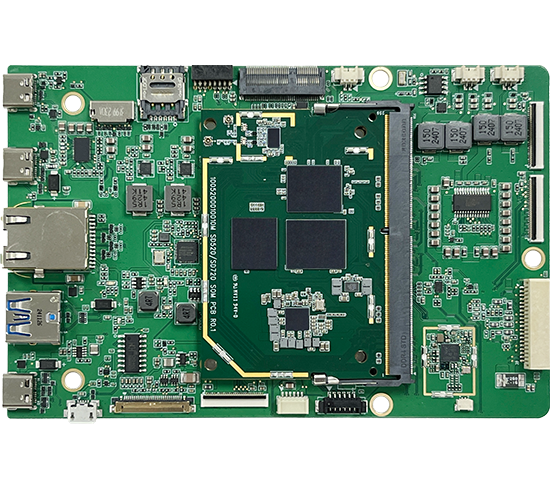

MTK G720 Embedded System SBC

• MediaTek Genio 720 (2x Cortex-A78 2.6GHz / 6x Cortex-A55 2.0GHz)
• Supports Android 15 and Yocto 5.0 OS
• MDLA3.0 @800MHz + VP6 @832MHz (~4Tops)
• Supports WiFi 6 / BT 5.3 / GbE connectivity, with compatibility for WiFi 6 / 4G / 5G expansion
• Multi-type I/O ports designed to enhance industrial and commercial applications

SBC-MB720

The MediaTek Genio 720 platform is a cutting-edge chipset for smart homes, interactive retail, edge AI computing, and industrial IoT. It delivers exceptional performance in edge processing, multimedia playback, and multitasking.

AMobile leverages the Genio 720 to develop smart home and interactive retail devices ranging from 6” to 21.5”. It fully supports Gigabit Ethernet, Wi-Fi 6, and 5G modules, all powered by the Android system. Our development platform helps partners easily create innovative products. Check out our detailed introduction to this high-performance edge AI IoT platform!

System
Processor MediaTek Genio 720 Octa-Core SoC
CPU 2 × Cortex A78, 2.6 GHz
6 × Cortex A55, 2.0 GHz
GPU Mali-G57 MC3
APU NPU850, 9.0 TOPS
DSP N/A
AI Processor DLA for edge AI
VPU for visual processing
OS Android 15, Yocto 5.0 Scarthga (2025, E/Dec)
Memory LPDDR5-6400Mbps, up to 16GB
Storage FS3.1, 128GB, SDIO interface
Network
WiFi 802.11 a/b/g/n/ax, 2T2R
Bluetooth BT 5.1
Ethernet Gigabit Ethernet (RGMII)
Display Interface
MIPI DSI Up to 2.5K60, 2.5K120 (w/ DSC)
eDP Up to 4K60 (w/ Merge)
HDMI N/A
DP Up to 4K 60fps
Camera Interface 2x MIPI CSI, 4 lane
High-speed Interface
USB 1x USB2.0/3.1, Type-C, support DP output and PD3.0 sink
1x USB2.0, Type-C
1x USB2.0 OTG x1, Type-C
PCIe 1x PCIe2.0
CB300 Expansion Board
SoM Interface SO-DIMM 260
Network 1x Gigabit, RJ45
USB 1x USB2.0/3.1, Type-C, support DP output and PD3.0 sink
1x USB2.0, Type-C
1x USB2.0 OTG x1, Type-C
eDP / DSI 1x eDP / 1x MIPI DSI, 4 lane
HDMI Output N/A
Touch Interface 1x I2C, 400KHz
SD Card 1x Micro SD Card socket
Audio Audio AMP, 10W x2
Camera 2x MIPI CSI, 4 lane
M.2 Socket M.2 Key E x1, PCIe2.0 (To be determined)
Expansion Connector I2C, SPI, UART, USB2.0, 5VDC, DMIC Input, Headset, Power on, Reset, Vol up, Vol down
Power Input DC Jack (12V–24V DC Input)
USB2.0 OTG Type-C (20V adapter)
Operating Temperature -10°C ~ 50°C
Operating Humidity 0%–85% at 60°C (relative humidity; non-condensing)
