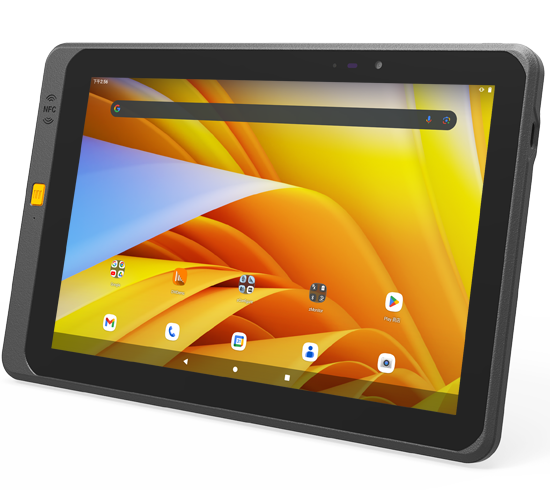

RT101 Multipurpose Mobile tablet
• MediaTek MT8781 (2x Cortex A76 2.2GHz / 6x Cortex A55 2.0GHz)
• Support Android™ 14, upgradable (2025), 15 (2026)
• IP65 waterproof and dustproof, 1.2m (4ft.) drop resistance
• Embedded 1D/2D barcode scanner
• High mobility with multiple connectivity including WLAN, BT and
WWAN.
• NFC Payments Made Easy with Tablet device
• High mobility with multiple connectivity with WiFi 6E&4G
• Hot-swappable battery system provides 24/7 mobile computing
Tap On Screen
Tap Screen technology is lightweight and sleek but challenging to develop. The top-positioned trigger key ensures ergonomic and practical use. Overcoming RF and antenna challenges enables compliance with EMV L1 standards, ensuring durability, stable communication, and seamless card interactions. Few devices allow top-tapping cards for instant transactions, highlighting advanced design and engineering.
Wi-Fi 6E Revolutionizing Retail Connectivity
Retail tablets leveraging Wi-Fi 6E ensure seamless connectivity, unaffected by interference from devices like microwaves. Features like MU-MIMO enhance multiuser efficiency, while OFDMA optimizes small data packet transmission. Target Wake Time (TWT) reduces IoT traffic and extends battery life. Security is strengthened with WPA3 and Enhanced Open, ensuring safer guest access.
Barcode scanning AND Trigger KEY
Retail rugged tablets with barcode scanning and trigger keys streamline in-store inventory management. These devices enhance efficiency by enabling quick, accurate stock checks and updates. They are designed to withstand retail environments.
| System | |
|---|---|
| CPU | MediaTek MT8781 Octa-core (2x Cortex A76 2.2GHz / 6x Cortex A55 2.0GHz) |
| OS | Android 14 (2025), 15 (2026) |
| Memory | 4GB (LPDDR 4X) / 8G (Optional) |
| Flash | 64GB/128GB (optional) |
| GMS | Support |
| LCD Display | |
| Size/Type | 10.1” IPS TFT LCD |
| Resolution | 800 x 1280 (WXGA) |
| Brightness(cd/m2) | 520 cd/m2 (TYP) |
| Peripherals and Devices | |
| Camera | Front: 8M(Default) Rear: 13M AF(Default)/21M(Optional) with Flashlight |
| Sensor | Accelerometer (G-sensor), Digital Compass , Gyroscope, Ambient light sensor |
| Navigation | AGPS/GPS/Glonass/Beidou/Galileo |
| Barcode Scanner | Zebra 4710 / SE55 (Optional) |
| Audio & Vibrator | 2 x built-in microphone 1 x built-in speaker (2W) 1 x vibrator |
| OTG | Support |
| Wireless | |
| WiFi | WiFi 5/6E |
| Bluetooth | BT 5.4 |
| WWAN | 2G: 850/900/1800/1900 MHz 3G: Bands 1/2/4/5/6/8/11/18/19/25/34/39 4G: Bands 1/2/3/4/5/7/8/9/12/17/20/26/34/38/39/40/41 |
| NFC | Support (ISO/IEC14443A/B; ISO/IEC15693; Tags T1/2/3/4/5; etc.) |
| I/O Interface | |
| SD Slot | 1 x microSD card slot (max 512GB) |
| SIM Socket | Mode 1: 2 x Nano SIM Mode 2: 1 x Nano SIM, 1 x micro SD |
| USB Port | 1 x USB Type-A, 1 x USB Type-C |
| Qualification | |
| Certification | CE, FCC, NCC |
| Durability Features | |
| IP-65 Certified | |
| 1.2m (4ft.) drop-resistance | |
| Power Supply | |
| Charging | USB Type-C, Pogo pin (Fast Charging) |
| Power Input | 9V/2A(fast charging) or 5V/3A (PD2.0/ PE2.0) support |
| Battery Capacity | 1 x Hot swappable 3.85V 6600mAh 1 x 180mAh internal battery pack |
| Key | |
| Physical Buttons | Volume, Barcode Trigger, Power Button |
| Mechanical & Environmental | |
| Operating Temp. | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temp. | -30°C ~ 70°C (-22°F to 158°F) |
| ESD | ±15kV aerial discharge, ±8kV direct contact discharge |
| Relative Humidity | 10% ~ 90%RH |
| Dimension | W: 268.2*H: 171.9*D:12.3mm |
| Weight | 750g (1.65lb) |
| Multi-Function Extension | |
| Multi | Cradle/VESA Mount |
