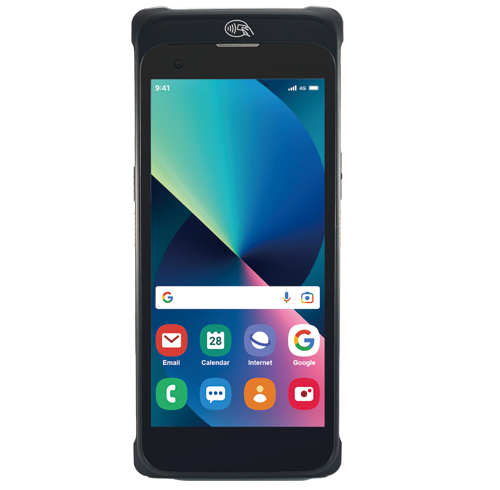

PD602

6" Rugged Mobile Computing Device

• PD602 is a rugged handheld device designed for fast wireless communication.
• Provides better Wi-Fi roaming connectivity to support the warehouse environment.
• Superior barcode engine to support all kinds of reading applications.
• Hot swappable battery design.
• IP67 and Drop 1.5M and 1.8M with bump.
• The Longevity platform supports long-term security patch updates from Google.
• Dedicated NFC design for payment application.
• GMS certified.

Feature
Specification
Download
Accessories
Contact Us

Android Portable Terminals

The PD602 is a reliable Android mobile device for your business tasks. It benefits from a wide 6” inch screen, an features an 8M pixel Sony rear camera and 20M pixel front camera rear camera and a long-lasting battery of 5100mAh (Hot Swappable) . Integrating NFC, 4G, and GPS, the PD602 provides absolutely every connectivity possible to work properly in the field. This handheld Android device ensures seamless transactions for your dedicated purpose in facility management, maintenance, logistics, asset tracking, customer enrollment, and cashless events.

Petit terminal NFC sous Android

The PD602 is a device dedicated to professionals, designed for mobile, flexible and agile working. It benefits from all the features of a smartphone (camera, bluetooth, 3G, touch screen, GPS, NFC, etc.), in a secure environment and intended for professionals (remote administration thanks to mobile device management) .

Accept Contactless Transactions

The PD602 is the ideal small Android mobile computer for your teams working on the go. Small, light and ergonomic, it will allow your teams to be more productive in the field without sacrificing their comfort.

Slim design, Large Capacity

- 20mm thick, quipped with a 4850mAh high capacity battery
- 12 hours work time & 3 hours fast charge
- Support continuous barcode scanning up to 5 hours
- Support up to 4GB RAM - Support up to 64GB Storage

System
CPU	MediaTek MT8781 (2A76 2.2GHz+6A55 2.0GHz)
OS	Android 13
Memory	4GB RAM + 64GB Flash
LCD Display
Size/Type	6" IPS TFT LCD
Resolution	720*1440
Brightness(cd/m2)	>550cd/m
Power Supply
Battery	Main 5000mAh 2nd 180mAh (Hot Swappable)
Charging	USB Type-C, Pogo pin (Fast Charging)
Power Input	9V/2A (Fast Charging) or 5V/3A (PD2.0/ PE2.0)
Wireless
WWAN	4G LTE (FDD): Bands 1, 2, 3, 4, 5, 7, 8, 12, 17, 19, 20, 28A, 28B LTE (TDD): Bands 34, 38, 39, 40, 41 3G WCDMA/UMTS/HSPA+: B1,2,5, 8 2G GSM/GPRS/EDGE (850/900/1800/1900 MHz)
WLAN	PD602 (Wifi 5) 802.11 a/b/g/n/ac
NFC	ISO/IEC14443A/B; ISO/IEC15693; Tags T1/2/3/4/5
Bluetooth	BT5.2
Peripherals and Devices
Camera	Front: 8Mpxl (FF) Rear: 13M AF(Default)/21M(Optional) with Flashlight
Sensor	Accelerometer (G-sensor) Magnetometer Gyroscope Ambient light sensor
Navigation	AGPS/GPS/Glonass/Beidou/Galileo
Barcode Scanner	Zebra SE4710
Audio & Vibrator	2 x built-in microphone 1 x built-in speaker (2W) 1 x vibrator
OTG	Support
I/O Interface
SD Slot	1 x microSD card slot (max 512GB)
SIM Socket (Dual slot)	2 x Nano SIM
USB Port	1 x USB Type-C
HDMI	--
Durability Features
IP-67 certified	Support
Drop-resistance	1.5m (4.92ft.)
Qualification
Certification	CE, FCC, UKCA, CB, NCC & CCC, PSTI
Mechanical & Environmental
Operating Temp.	-10°C ~ 50°C
Storage Temp.	-30°C ~ 70°C
Relative Humidity	10% ~ 90%RH
Dimension	184 x81 x15.8mm
Weight	275g

*Provide security updates until 2029-12-31
*The defined support period will not shorten after the publication. If the support period will be extended, the new defined support period will be published as soon as is practicable.

All Datasheet Manual

Name
Type
Size
Language
Version
Publish date

PD600/PD602 Datasheet 簡

PDF

399 kb

Zh

1.0

2024-10-09
PD602 User manual

PDF

1.32

En

1.0

2024-08-07
PD602 Datasheet

PDF

1.2 MB

En

1.4

2024-08-27
PD602 Datasheet_繁

PDF

3.5 MB

Tw

1.0

2024-08-27

Adapter connect board

P/N: US:6910306000030M / EU:6910306000040M

PG-PD600

P/N: 7406020001098M

SCD-PD600

P/N: US:7406020001051M/ EU:7406020010061M
